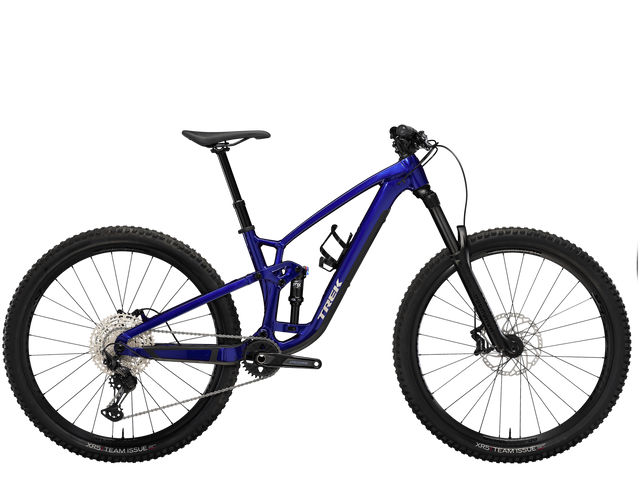

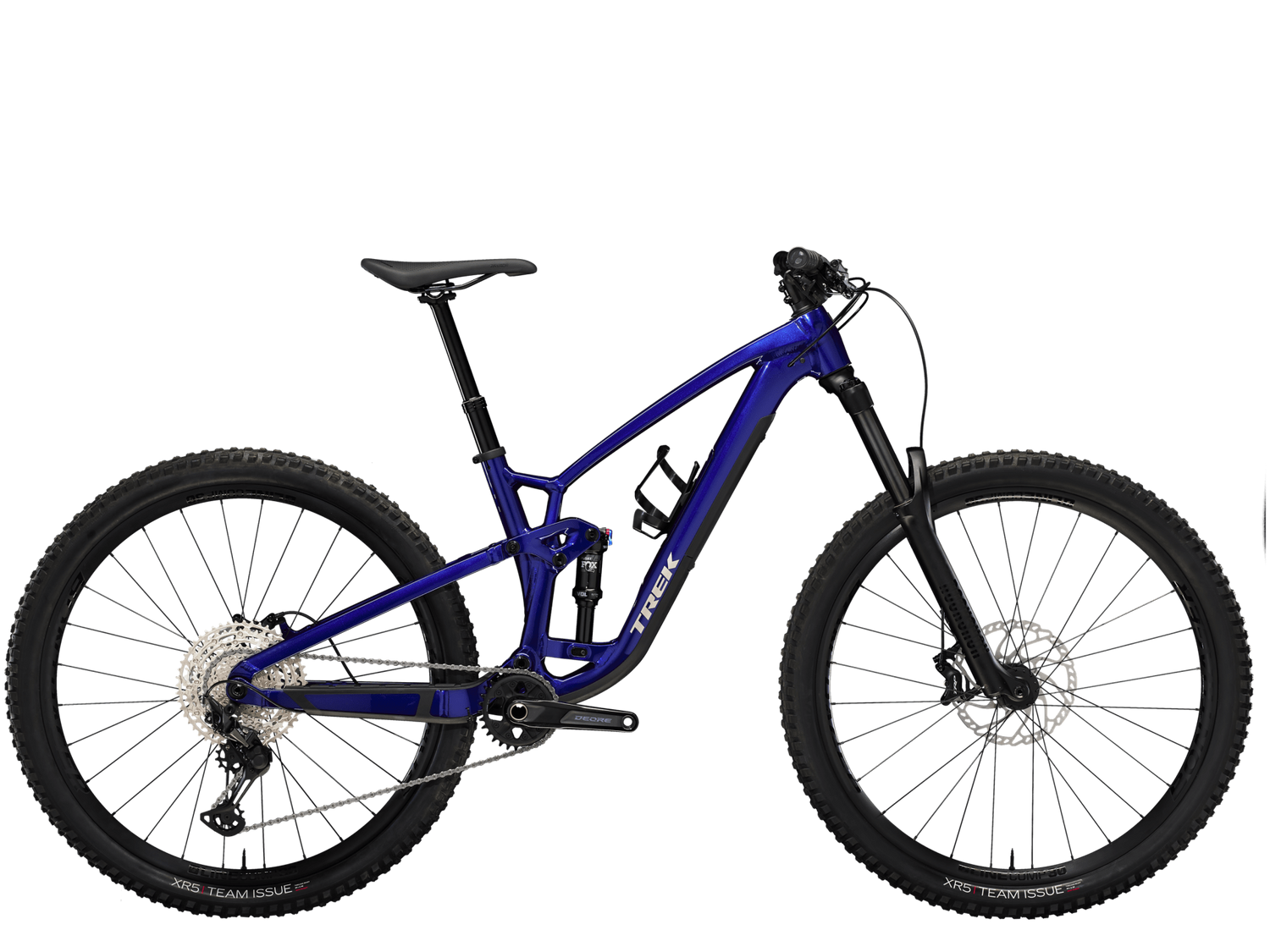

Trek 2023 Fuel Ex 7 Gen 6 Hex Blue

The Fuel EX 7 is a do-anything trail machine evolved to eat up singletrack. Upgraded 150 mm front and 140 mm rear suspension smooth out rough and technical descents, while a lightweight aluminium frame keeps things lively on the climbs. New in-frame storage and adjustable geometry give you all the perks that come with the carbon model, without the price tag. Tubeless wheels, and reliable Shimano SLX 1x12 drivetrain round-out this build for ultimate trail fun.

Frame - Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork - RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
Shock - Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185 mm x 55 mm
Max compatible fork travel - 160mm
Wheels -
*Wheel front - Size: XS , S
- Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
- Size: S , M , ML , L , XL , XXL
- Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
*Wheel rear - Size: XS , S
- Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle, 27.5"
- Size: S , M , ML , L , XL , XXL
- Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
Skewer rear - Bontrager Switch thru-axle, removable lever
*Tyre - Size: XS , S
- Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50"
- Size: S , M , ML , L , XL , XXL
- Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Tyre part - Bontrager TLR sealant, 180 ml/6 oz
Rim strip - Bontrager TLR
Max tyre size - Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
Drivetrain -
Shifter - Shimano SLX M7100, 12-speed
Rear derailleur - Shimano XT M8100, long cage
Crank - Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Bottom bracket - Shimano BB-MT501 BSA
Cassette - Shimano Deore M6100, 10-51, 12-speed
Chain - Shimano Deore M6100, 12-speed
Max. chainring size - 1x: 34T round, 32T oval, min 28T
Components -
Saddle - Bontrager Arvada, steel rails, 138 mm width
*Seatpost - Size: XS , S
- TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
- Size: M , ML
- TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
- Size: L , XL , XXL
- TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar - Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Grips - Bontrager XR Trail Comp, nylon lock-on
*Stem - Size: XS , S
- Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
- Size: M , ML , L , XL , XXL
- Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Head set - Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
*Brake - Size: XS , S , M , ML , L , XL , XXL
- Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
- Size: XS , S , M , ML , L , XL , XXL
- Shimano hydraulic disc, MT4100 lever, MT420 4-piston calliper
*Brake rotor - Size: XS , S , M , ML , L , XL , XXL
- Shimano RT66, 6-bolt, 180 mm
- Size: XS , S , M , ML , L , XL , XXL
- Shimano RT66, 6-bolt, 203 mm
Rotor size - Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Accessories -
Bag - Bontrager BITS Internal Frame Storage Bag
Weight -
Weight - M – 15.97 kg/35.21 lb (with TLR sealant, no tubes)
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
