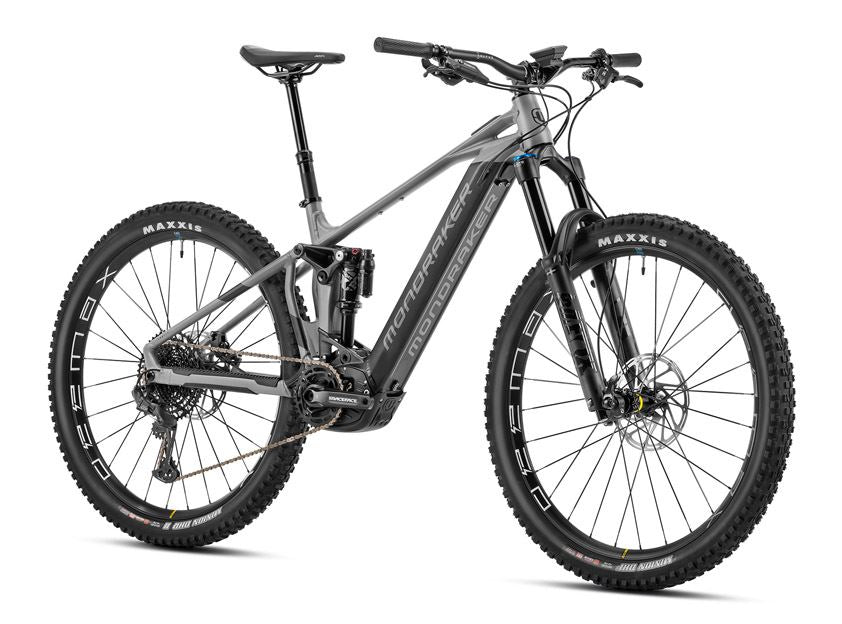

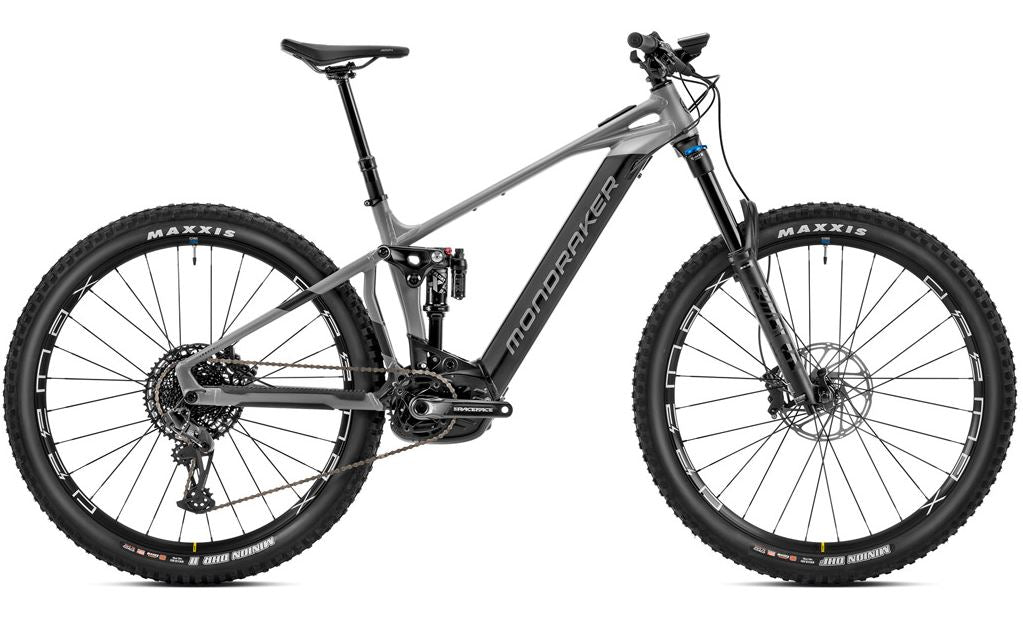

Mondraker 2023 Crafty R Gray/black
$11,999.00
Unit price
/
Unavailable
Mondraker 2023 Crafty R Gray/black - LARGE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Delivery Available
Local Delivery Available
Yarra Valley Cycles offer Local delivery within 20km. Some Fees apply.
Postage & Shipping - Free on "most" small parcel orders over $150
Postage & Shipping - Free on "most" small parcel orders over $150
YVC offers Free Shipping on most small items online when your spend over $150. Large & Bulky items may attract shipping fee. Calculated at Checkout.
Description
Description
01. FRAME Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery
01A. FRAME Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive p
02. FORK Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air prel
03. REAR SHOCK Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
04. SHOCK SETTINGS medium compression, medium rebound, air volume spacer 0.2
05. HEADSET Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree
06. STEM Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore
07. HANDLEBAR Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore
08. GRIPS Onoff Desert, 1lock-on, 135mm
09. SEATPOST Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
10. SADDLE FIZIK Terra Aidon X5 145mm
11. FRONT BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
12. REAR BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
13. BRAKE LEVER Sram DB8, tool-free reach adjust
14. FRONT HUB Mavic, Boost 15x110mm, IS 6 bolts
15. REAR HUB Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
16. FRONT TIRE Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
17. REAR TIRE Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
18. CRANKSET Race Face Aeffect ebike, 165mm
19. RINGS Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
20. PEDALS N/A
21. CHAIN Sram SX Eagle, 12s, Powerlock
22. REAR DERAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
23. CASSETTE Sram PG-1210, 11-50T, 12s
24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System
25. BATTERY Bosch Powertube 750Wh
26. DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
27. DERAILLEUR HANGER Mondraker M068
28. SIZES S: 380mm / M: 420mm / L: 450mm / XL: 490mm
01A. FRAME Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive p
02. FORK Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air prel
03. REAR SHOCK Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
04. SHOCK SETTINGS medium compression, medium rebound, air volume spacer 0.2
05. HEADSET Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree
06. STEM Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore
07. HANDLEBAR Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore
08. GRIPS Onoff Desert, 1lock-on, 135mm
09. SEATPOST Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
10. SADDLE FIZIK Terra Aidon X5 145mm
11. FRONT BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
12. REAR BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
13. BRAKE LEVER Sram DB8, tool-free reach adjust
14. FRONT HUB Mavic, Boost 15x110mm, IS 6 bolts
15. REAR HUB Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
16. FRONT TIRE Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
17. REAR TIRE Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
18. CRANKSET Race Face Aeffect ebike, 165mm
19. RINGS Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
20. PEDALS N/A
21. CHAIN Sram SX Eagle, 12s, Powerlock
22. REAR DERAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
23. CASSETTE Sram PG-1210, 11-50T, 12s
24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System
25. BATTERY Bosch Powertube 750Wh
26. DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
27. DERAILLEUR HANGER Mondraker M068
28. SIZES S: 380mm / M: 420mm / L: 450mm / XL: 490mm
